Basic Info.
Product Description

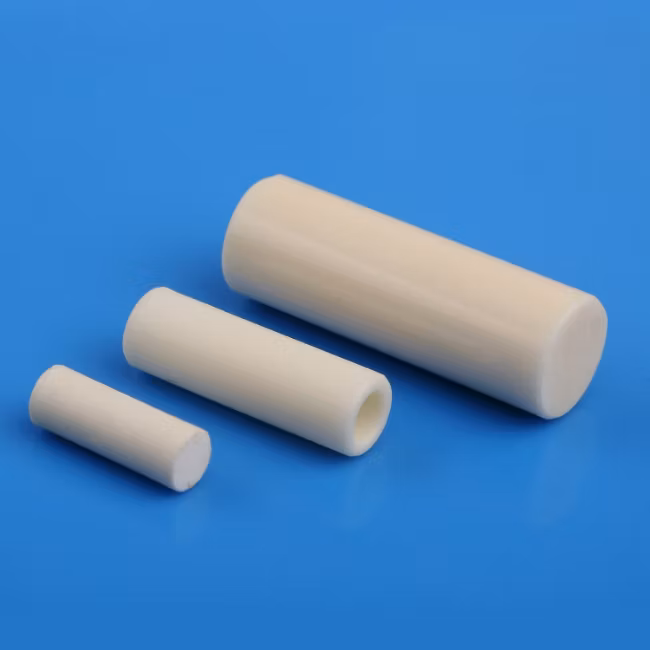

The description of zirconium oxide ceramic cylinder
Our facility manufactures a wide range of zirconia ceramic cylinders by cold ISO pressing, dry pressing, or ceramic injection molding. All these zirconia ceramic cylinders are with a dense ceramic body. In order to reduce the friction further, the cylindrical surface will be polished to be a mirror effect.
We have been dealing with various standard and customized zirconia ceramic rods, including the dimensions, different grades of zirconia, different shapes,
The specification of the ceramic cylinders
1. Material options: YSZ zirconia, TTZ zirconia, 95~99.5% alumina, Silicon carbide (SiC)
2. Forming method: Extruding, Dry pressed, Ceramic injection molding and ISO pressing
3. Specification: Available outer from 1mm to 50mm, available length from 3mm to 2000mm
4. Tolerance A: Diameter below 12.5mm, tolerance ± 3% or ± 0.076 mm, whichever is greater. Straightness: camber / length < 0.003
5. Tolerance B: Diameter above 12.5mm, tolerance ± 5% or ± 0.76 mm, whichever is greater. Straightness: ≤ 0.006″/1.000″ cumulative
6. Surface finish: the working surface to be diamond polished up to Ra0.1, or better
The prime features of zirconium oxide ceramic cylinders
1. Higher density than most of technical ceramics, over than 6 g/cm3
2. Low thermal conductivity, less than 3 W/m.k at room temperature
3. Chemical inertness, not interact with almost all strong acid and alkali
4. High hardness, over than 1300 MPa for Vicker
5. Can withstand higher temperatures up to 2400°
6. Exceptional fracture toughness reaches up to 8 Mpa m1/2
7. Resistance to molten metals due to an extraordinary melting point
8. Good Wear resistance, over 276 times than stainless steel
Related products of Zirconium Oxide ceramic cylinder
Our advantage and strength

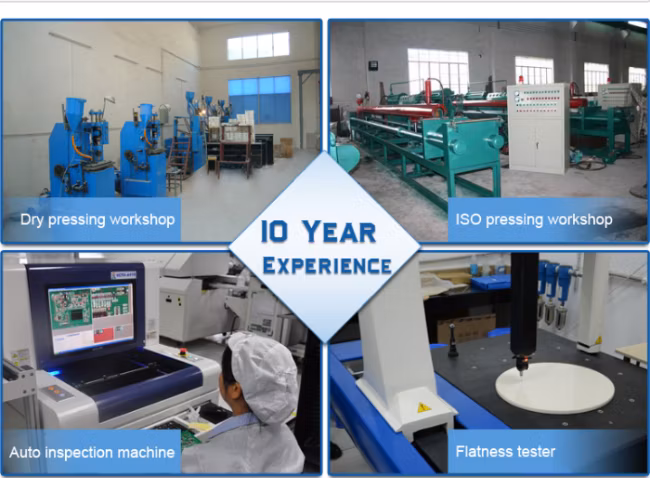

1.Own in-house comprehensive types of manufacturing equipment from raw material to precision machining.
2.With over 15 years of manufacturing experience of OEM, ODM, and professional and teams
3.The rigorous and complete quality control system, including IQC, IPQC, OQC, and QA, also CPK, AQL
4.Support special and custom-made needs, including prototyping and R&D cases, or serial massive demands.
5. Offer many selections of technical ceramic materials, including alumina, zirconia, silicon carbide, silicon nitride
6. Deal with every case in order to enhance the competitiveness of customers and make their business growth.
7. Providing one-stop ceramic components, including Ceramic Tubes, Ceramic Rods, Industrial Ceramic Plate.
FAQs (Frequently Asked Questions)
Q1: Is it available to produce customized products?
A: We support custom-made alumina ceramic tubes as per different dimensions, designs, surface treatment.
Q2.When can I get the price after sending the inquiry?
A: We regularly quote within 24 hours after we get your inquiry.If you are in urgent need of getting the price,
Please call us or tell us in your email so that we will proceed with your inquiry as a priority.
Q3.How long does the whole procedure being worked out?
A: After you place an order, the manufacturing time is about 25 working days.
Q4.How to ensure quality in your factory?
A: The strict quality-control will be done in the production line, including IQC, IPQC, QA, OQC,
Also both CKP, AQL are regularly used in the production.
Q5. Are you a factory or trading company?
A: We are a professional manufacturer. You are welcome to visit our factory and cooperate with us.
